T-19

Product Description

Experience the grandeur of robust aesthetics with our heavy-duty aluminum window system, where strength meets style, offering an impressive, bold statement to architectural designs. They embody a fusion of durability and elegance, anchoring your space with a sense of timeless sophistication.

Technical Specification

Minimum facing width

19 mm Interlock / Meting Profile 41 mm

Max. Sash height

3.65 m (approx)

Max. Sash Width

1.8 m (approx)

Max. Sash area

6.57 sq m (approx)

Max. Sash Weight

300 Kg (approx)

Finishes

Anodise, Powder Coating, Wooden Coating and PVDF Coating

Aluminum Grade

Alloy Grade 6063-T6

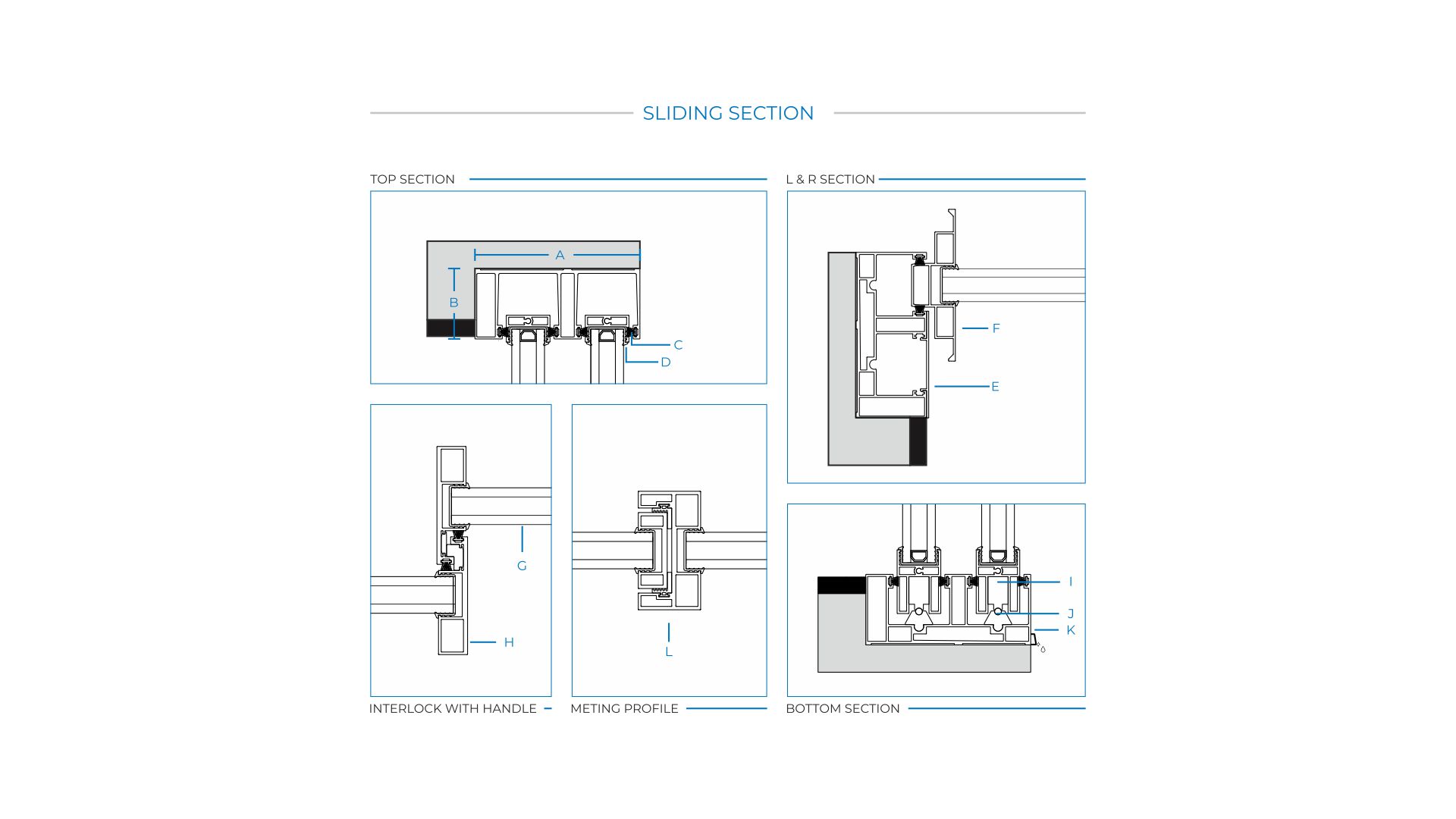

Size

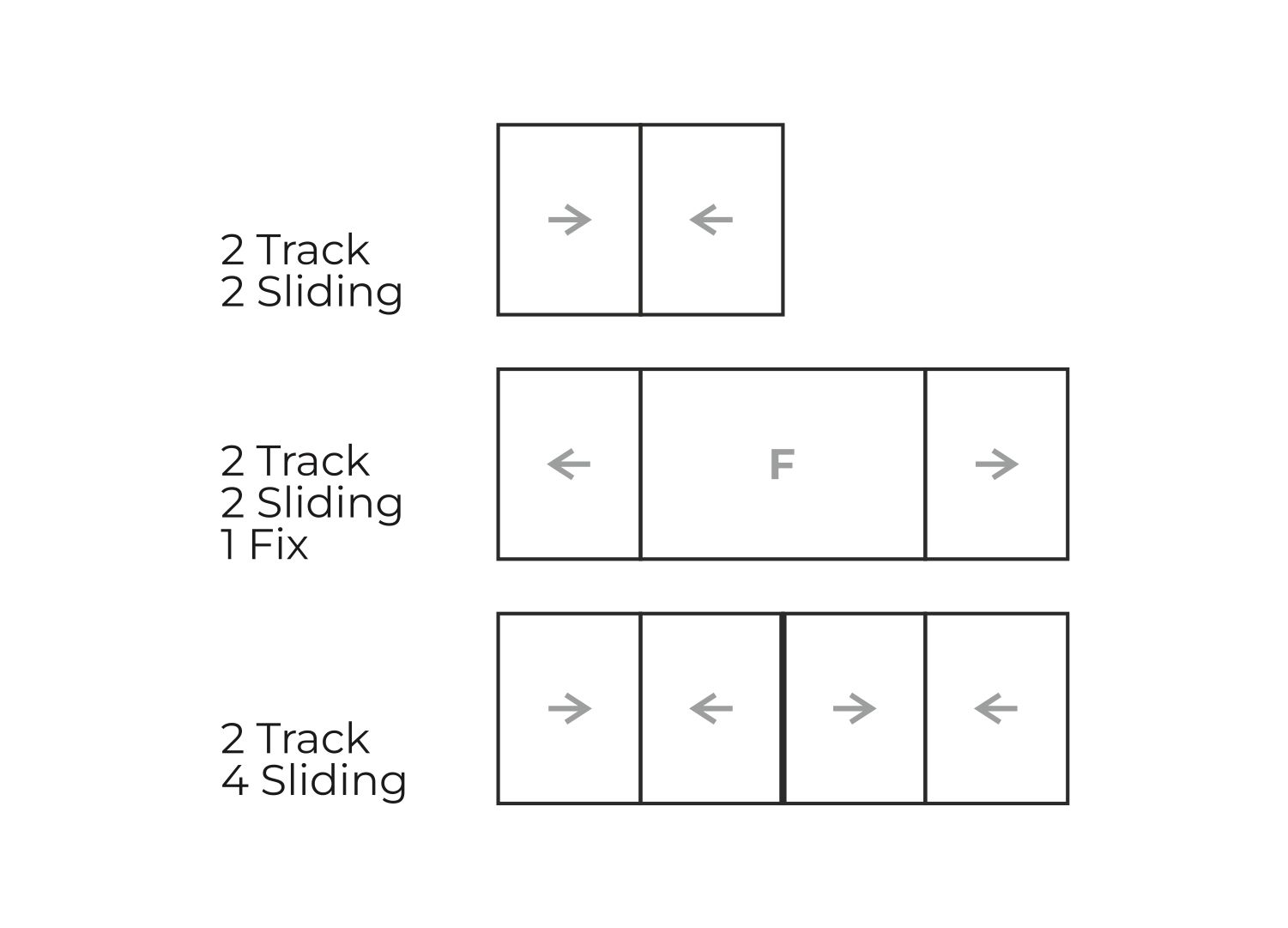

A - 2 Track (121 mm)

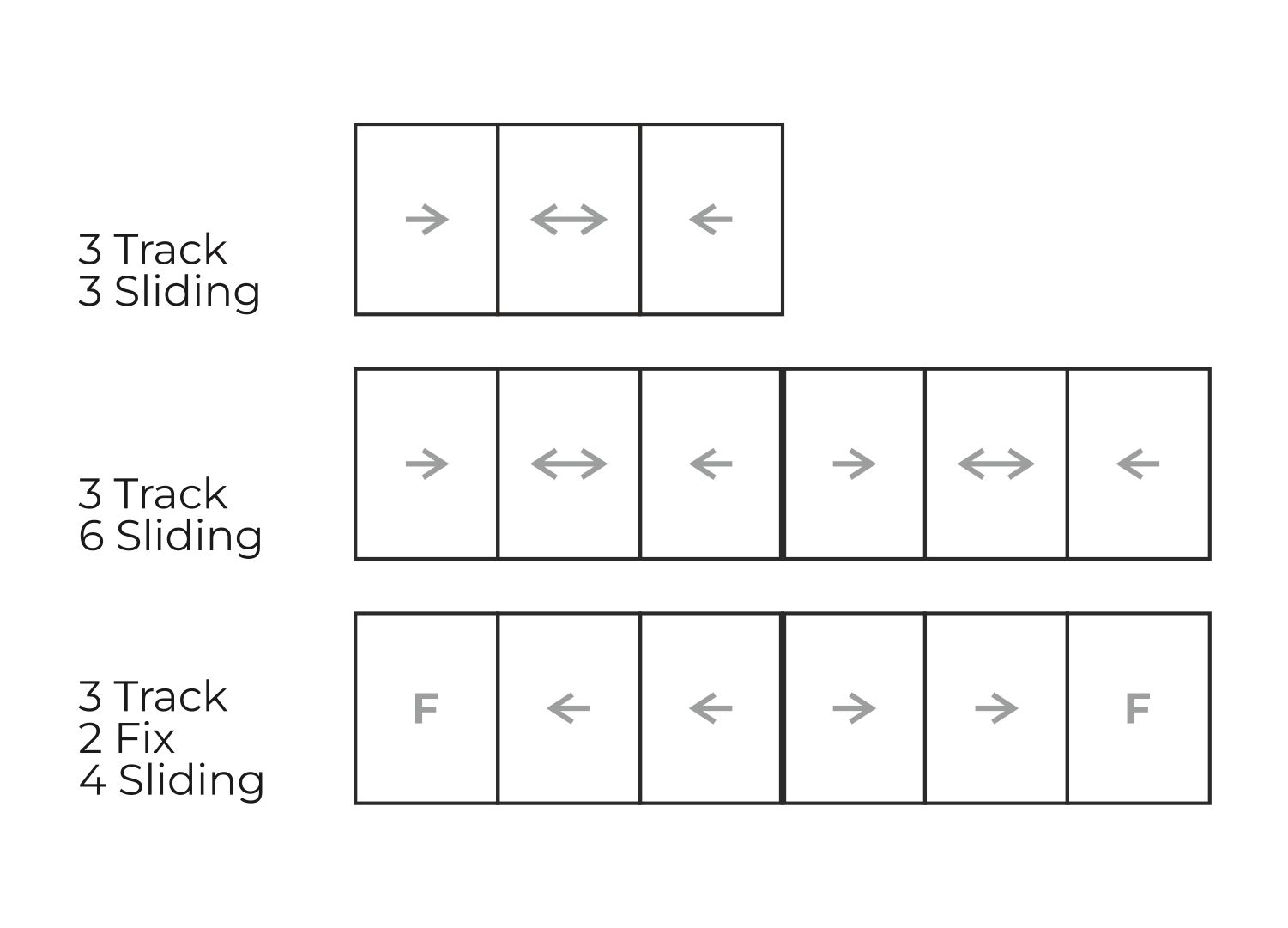

- 3 Track (179 mm)
B - 2 Track (51 mm)
- 3 Track (51 mm)
Wool pile (Three Fin)
High-quality brush prevents air, water, and dust penetration into the track, ensuring protection.
EPDM Gasket
EPDM has very excellent weather resistance & UV resistance, EPDM gasket is highly suitable for direct sunlight and rainy water.
Track Cover
Aesthetic metal cover shields shutter track, dust, and water for maintenance-free elegance.
Profile Handle
The slim handle profile ensures seamless operation, blending aesthetics with functionality.
Glass
Accommodates 12mm single glass toughened, 13.5mm laminated glass 6+12+6 DCU enhancing durability & visual appeal in design.
Inter Locking Profile With Handle
Slim 19mm interlock between shutters maintains a sleek, unobtrusive appearance.
Roller Bearing
Stainless steel roller or nylon roller with with 300 kg per sash load capacity for smooth and balanced shutter operation.
Rail
Manufactured with stainless steel ensures smooth sliding with minimal resistance for heavy windows.
Drainage System
Integrated water management with drainage slots in each track for efficient water runoff, suitable for rainy areas.
Meting Profile
Slim 41mm Meting Profile between shutters maintains a sleek, unobtrusive appearance.
